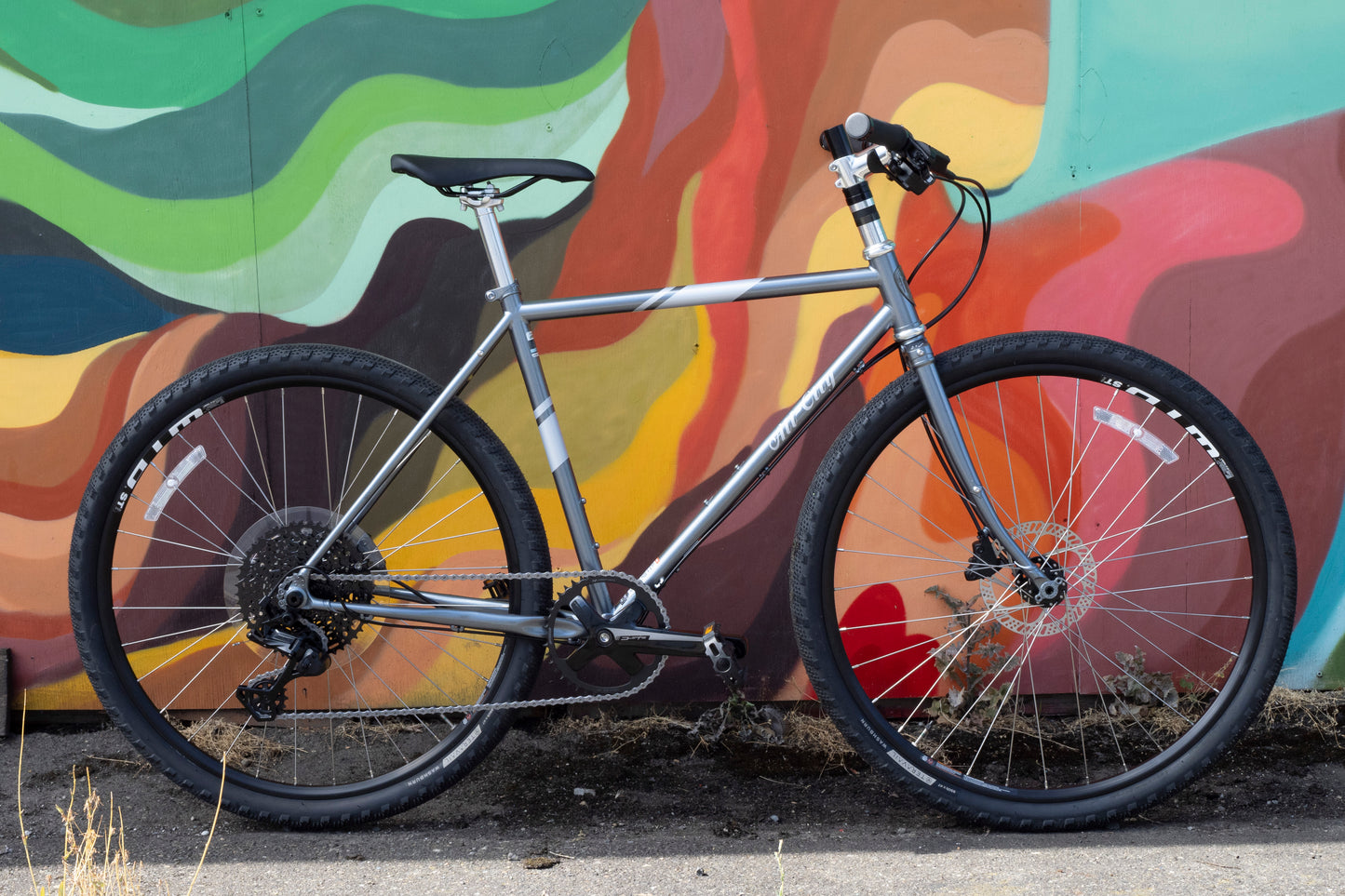

All-City Space Horse Bike - 650b, Steel, MicroShift, Moon Powder, 46cm
All-City Space Horse Bike - 650b, Steel, MicroShift, Moon Powder, 46cm
We’ve got this bike in the shop set up for test rides! You can buy it on the spot or we can order a different size for you. Right now it has an uncut steer tube, so we can adjust the bars to a height that works well for you.
It is a small bike, good for a rider about 5’3” to 5’6”. Listed as a stock bike but we can customize it to your liking.
Manufacturer’s info:
Our most popular and versatile model, the Space Horse has become a bit of a cult favorite through its classic styling and ability to handle just about any task or terrain. Ambitious road centuries, gravel racing, loaded touring, looking great while commuting — the Space Horse is equipped for it all.
- 612 Select Tubing – a proprietary blend of 4130 double-butted Chromoly tubes, every piece of tubing on every frame size has been carefully chosen to provide the best ride possible
- Geometry — Mix between road and randonneuring with a relatively short rear end and a slightly lower bottom bracket than a standard road bike

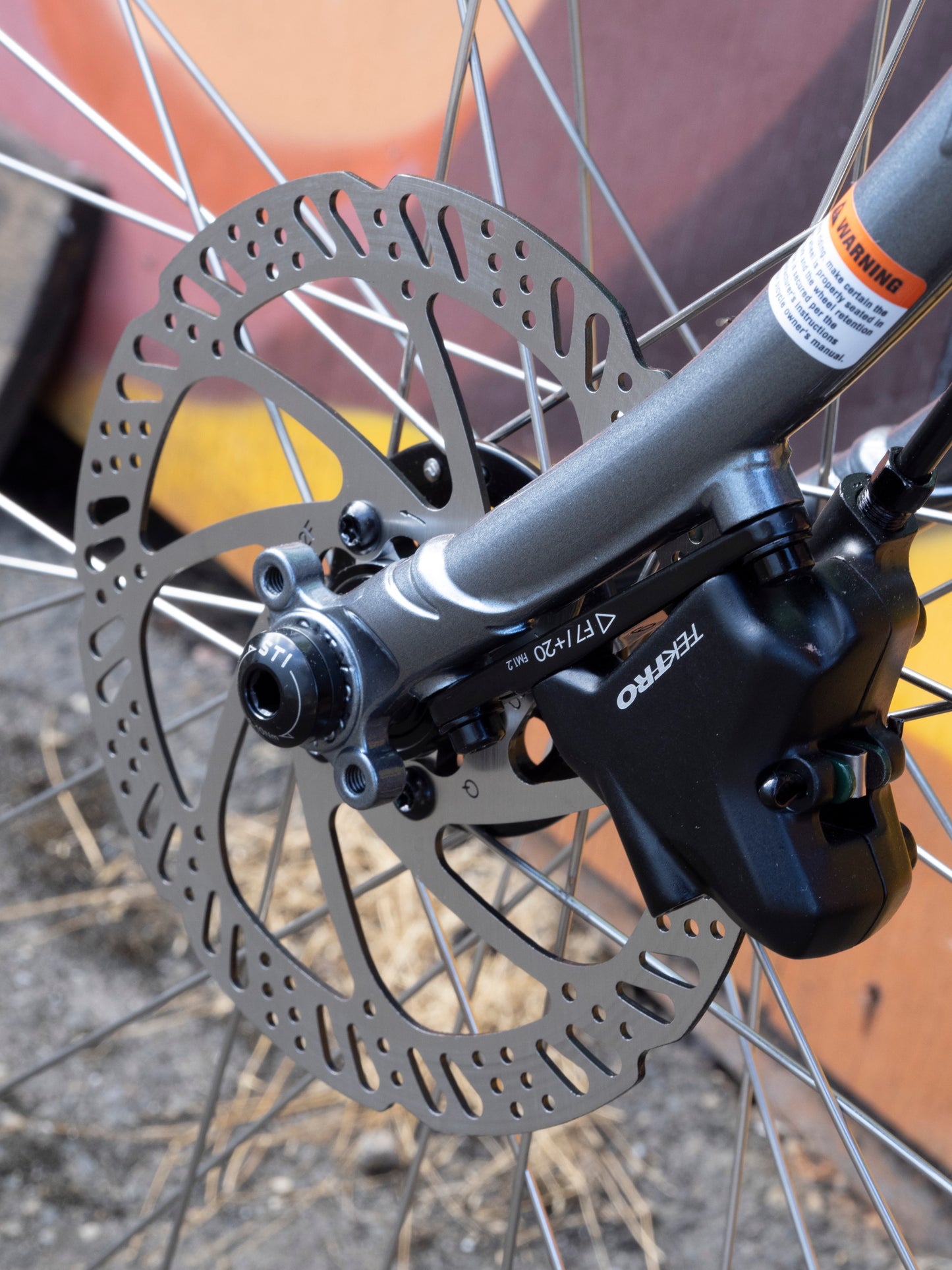

- 12mm front and rear thru-axles, flat-mount disc brakes
- Front and rear rack mounts, fender mounts, and pump peg
- Fork features ports for internal Dynamo cable routing
- Tire Clearance — 43–61cm frames fit 650b x 47mm (650b x 42mm w/fenders); additionally, 49–61cm frames fit 700c x 45mm (700c x 42mm w/fenders)

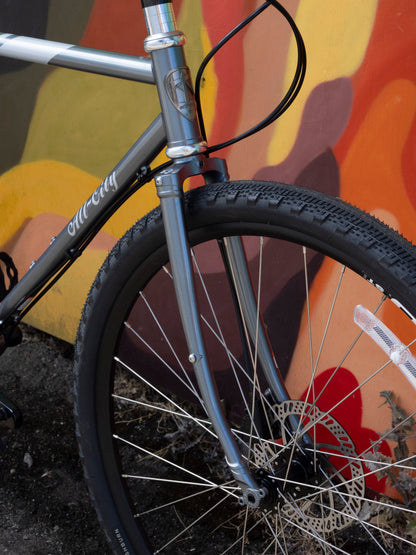

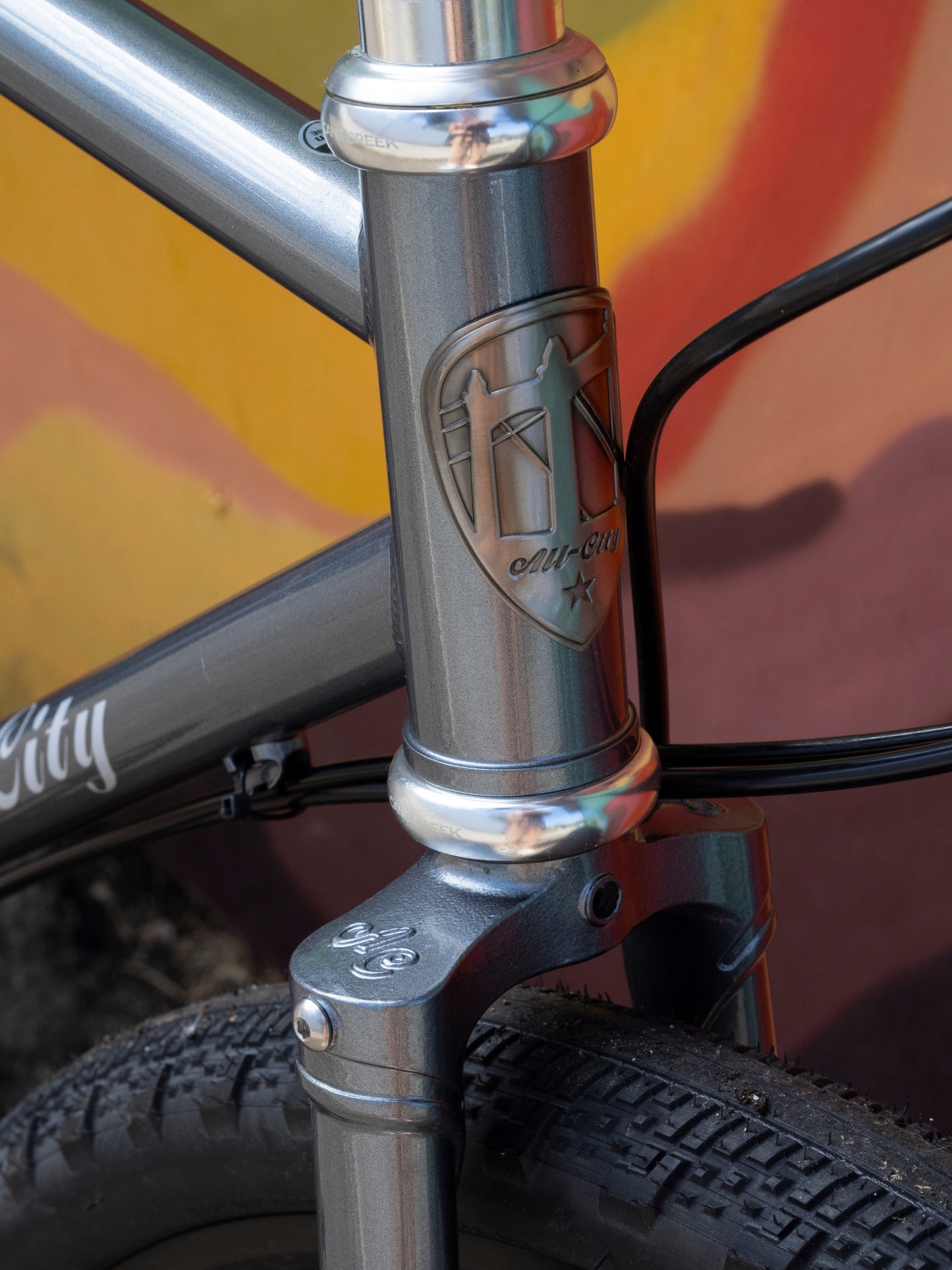

- Signature custom-cast dropout with replaceable derailleur hanger, signature lugged fork crown and custom fork ends, integrated seat collar, pantographed bottom bracket shell, reinforced bottle bosses for three bottle cages.
Geometry:
Size | 43 | 46 | 49 | 52 | 55 | 58 | 61 |
---|---|---|---|---|---|---|---|
Seat Tube Length (mm) | 420 | 450 | 480 | 510 | 540 | 570 | 600 |
Top Tube Length (Effective) (mm) | 495 | 515 | 530 | 545 | 560 | 580 | 610 |
Head Tube Angle | 70.0° | 70.5° | 71.0° | 71.0° | 72.0° | 72.0° | 72.0° |
Seat Tube Angle | 75.0° | 74.5° | 74.2° | 73.5° | 73.0° | 72.5° | 72.0° |
BB Drop (mm) | 58 | 58 | 75 | 75 | 75 | 75 | 75 |
Chainstay Length (mm) | 420 | 420 | 435 | 440 | 440 | 445 | 445 |
Wheelbase (mm) | 989.4 | 1001.1 | 1021.1 | 1034.6 | 1029.9 | 1049.6 | 1073.7 |
Standover Height (mm) | 725.3 | 747.2 | 779 | 802 | 831 | 857.3 | 883.1 |
Head Tube Length (mm) | 95 | 105 | 110 | 125 | 150 | 175 | 200 |
Fork Length (mm) | 376 | 376 | 395 | 395 | 395 | 395 | 395 |
Fork Rake (mm) | 49 | 49 | 52 | 52 | 47 | 47 | 47 |
Stack (mm) | 493 | 504 | 545 | 559 | 589 | 612 | 636 |
Reach (mm) | 363 | 375 | 376 | 380 | 380 | 387 | 403 |
Stem Length (mm) | 70 | 80 | 90 | 100 | 100 | 110 | 120 |
Stem Angle | -- | -- | -- | -- | -- | -- | -- |
Handlebar Width (mm) | 380 | 380 | 400 | 420 | 420 | 440 | 460 |
Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 175 | 175 |
